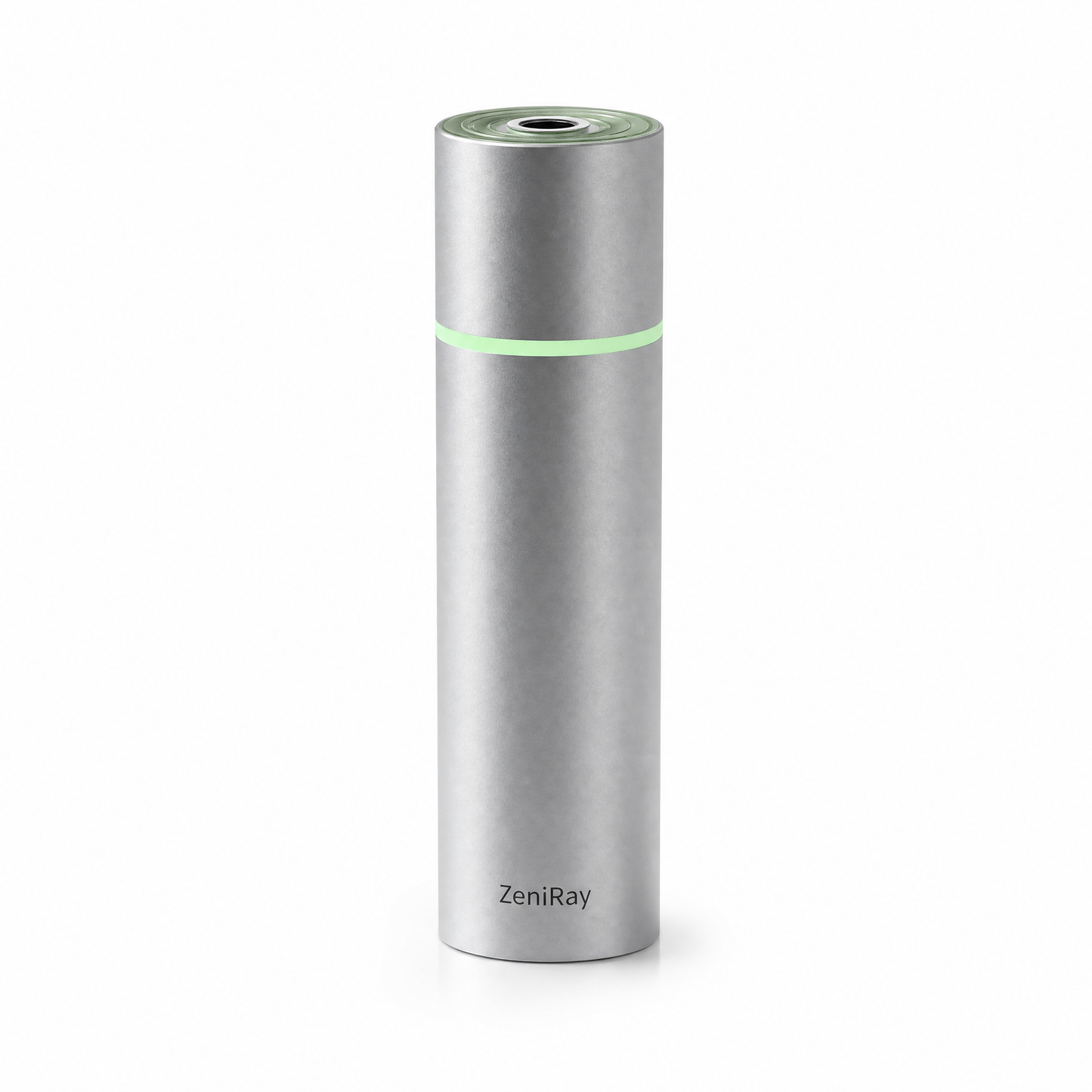

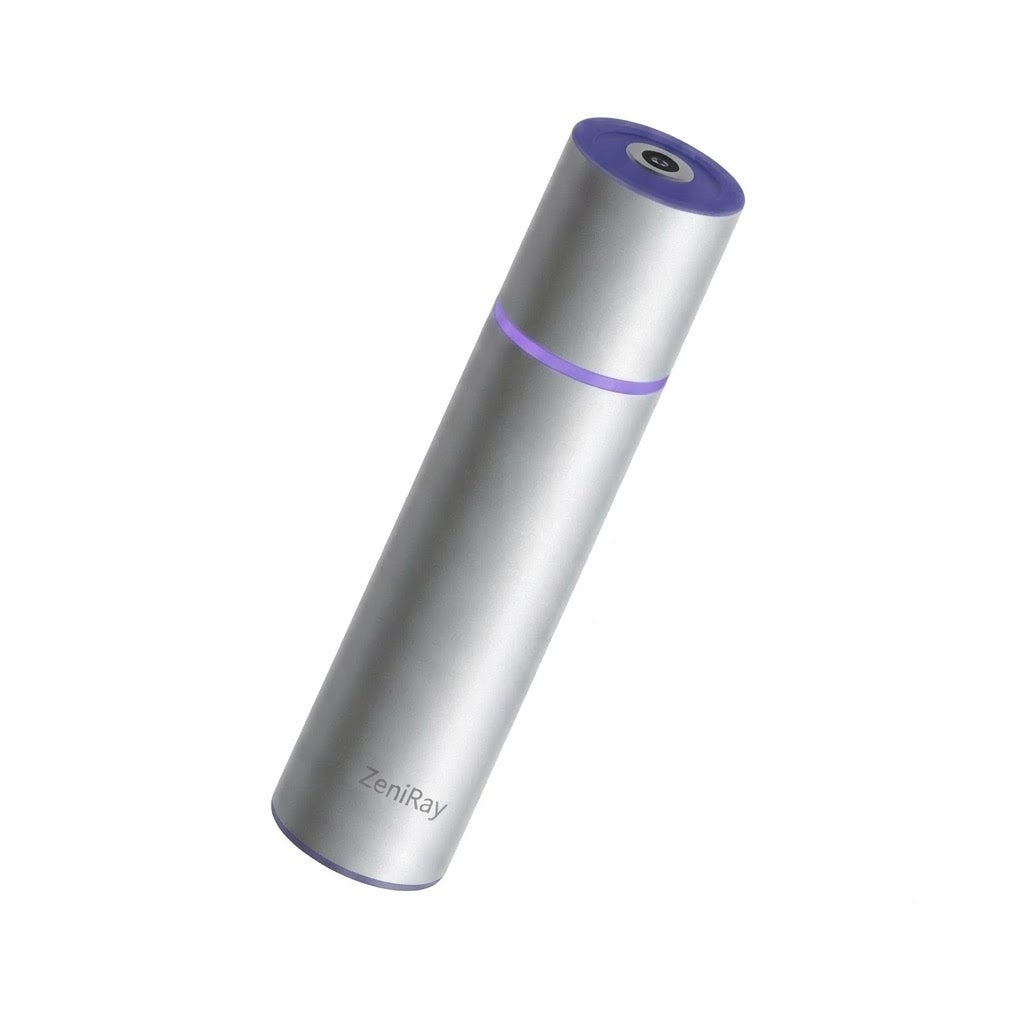

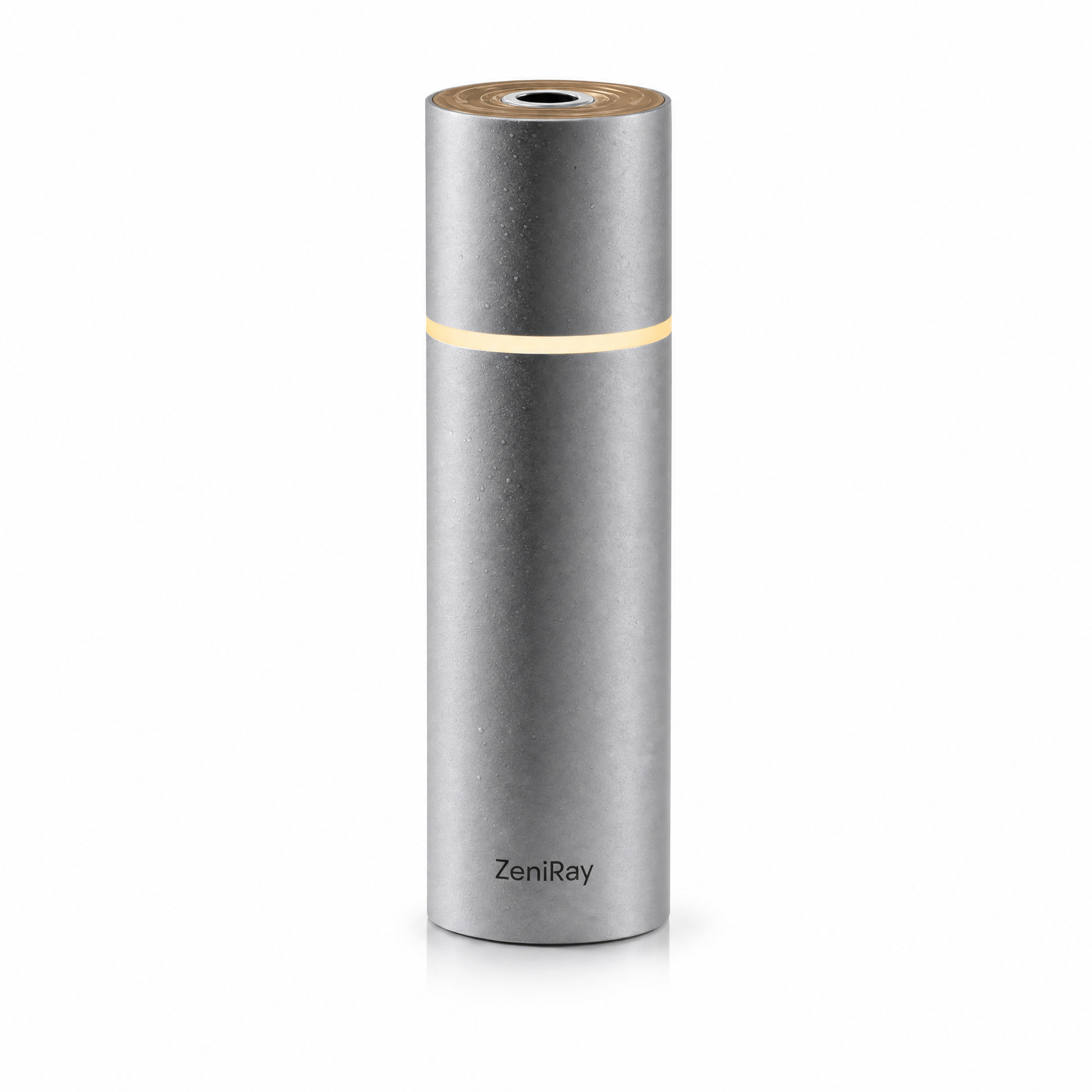

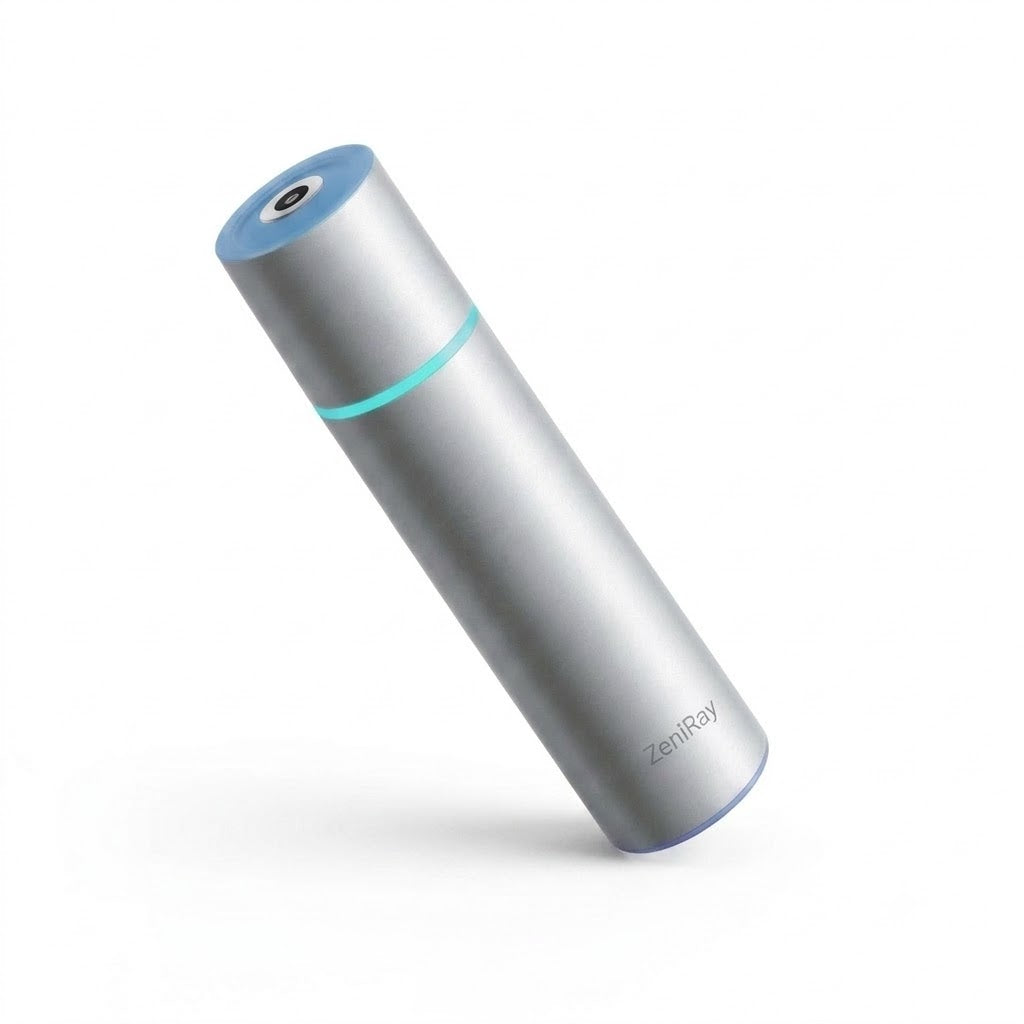

ZeniRay Smart 10 LPM UVC LED Water Sterilizer – Flow-Activated Terminal Purifier Module (99.99% Sterilization, Mercury-Free Last-Mile Shield for Luxury Homes)
ZeniRay Smart 10 LPM UVC LED Water Sterilizer – Flow-Activated Terminal Purifier Module (99.99% Sterilization, Mercury-Free Last-Mile Shield for Luxury Homes)
Couldn't load pickup availability



The Hidden Flaw in Premium Home Filtration: Why Clean Water Needs a Guard
Whether you are residing in a luxury villa in Dubai, an upscale apartment in Riyadh, or a contemporary home in Western Europe, you likely rely on a premium multi-stage water filtration system. You trust it because the water looks clear and tastes crisp.
However, there is an invisible compromise that standard filter brands rarely mention. Water filters are exceptional at stripping away sand, microplastics, and chlorine. But by removing chlorine, you inadvertently strip the water of its only active disinfectant.
In the Gulf region, water often rests in large rooftop or underground holding tanks under intense summer heat, inviting secondary bacterial growth before it ever reaches your faucet. In European cities, water journeys through kilometers of aging municipal pipe networks, picking up trace pathogens along the last mile.
When chlorine-free water sits stagnant inside dark under-sink tubes, it becomes highly vulnerable to unseen microscopic colonization.
Filtration makes your water clean, but ZeniRay makes it completely safe. Operating as your ultimate terminal safeguard, the ZeniRay 10 LPM UVC LED Module destroys microscopic threats the exact millisecond before the water leaves your tap and enters your glass.
Introducing the ZeniRay 10 LPM Module: Intelligent Purity Meets Haute Design
The ZeniRay Smart UVC LED Sterilizer is a beautiful fusion of advanced bio-medical protection and luxury interior design. Engineered to deliver a more than 99.99% bacteria inactivation rate, it utilizes deep, high-energy ultraviolet photons to instantly dismantle the DNA and RNA of waterborne pathogens.
With a robust flow capacity of 10 Liters Per Minute, it serves as the perfect final stage for kitchen drinking taps, luxury ice machines, and premium coffee bars without causing any drop in your water pressure.
Product Specifications & Performance
Product Model: ZeniRay 10LPM
| No. / Model | Parameter | Description |
| ZeniRay 10LPM | Dimensions | Φ45 × 197.1 mm |
| Wiring Harness | UL2464 20AWG/22AWG VW-1 300V | |
| Cable Length | 200 ± 20 mm | |
| Connector | GVE0108-2P Waterproof Female Connector | |
| Water Inlet & Outlet | 3/8" Quick-connect port (see technical drawing for inlet/outlet markings) | |
| Single Solder Joint Pulling Force | ≥ 25 N | |
| Single Terminal Insertion/Extraction Force | ≥ 25 N | |
| UVC Wavelength | 270–280 nm | |
| Flow Rate | ≤ 10 L/min | |
| Operating Pressure | ≤ 1.0 MPa | |
| Housing Material | PP + GF20% / Aluminum Alloy | |
| Indicator Light |
• Standby Antibacterial Mode: Same color as housing • Flow Disinfection Mode: Green • End-of-Life Alarm: Red |
|
| Buzzer | Continuous sound upon reaching End-of-Life | |
| Lifespan | ≥ 5000 hours |
Why the ZeniRay 10 LPM is an Elite Health Investment:
-
The 5,000-Hour Smart Math (Decades of Pure Water): Legacy UV systems use old-fashioned bulb lamps that burn hot 24/7, wasting massive amounts of electricity and cooking your stagnant water. ZeniRay features a Built-in Smart Flow Meter. The 5,000-hour operational lifespan ONLY ticks down when water is actively moving through the device. If your household draws drinking and cooking water for a combined 20 minutes a day, a single ZeniRay module will protect your family flawlessly for up to 40 years without a single replacement or maintenance requirement.
-
Zero Heat Transfer, Instant Protection: Because our solid-state semiconductor LED chips require zero preheating time, they flash-sterilize water instantly the moment your faucet opens. The system remains completely cool, ensuring your refreshing glass of drinking water is always crisp, cold, and delicious.
-
100% Mercury-Free & Eco-Friendly Design: Traditional UV lamp tubes contain fragile glass and toxic mercury, posing a dangerous contamination risk right next to your drinking supply. ZeniRay is completely mercury-free and non-toxic, offering pure physical purification that aligns with premium European eco-standards and green GCC initiatives.
-
The Smart "Auto" Status Ring: Tucked elegantly into your living space, ZeniRay communicates its operational status effortlessly. A beautifully integrated visual ring glows instantly during active water flow, providing immediate, soothing reassurance that your physical sterilization field is running at peak efficiency.
-
Five Elite Designer Finishes: Pure health shouldn't look industrial. To complement the aesthetics of modern European minimalist kitchens and opulent GCC estate interiors, the ZeniRay module is available in five curated cap accents: Emerald Green, Royal Lavender, Ocean Azure, Sahara Gold Woodgrain, and Velvet Indigo.
Versatile Applications for Discerning Lifestyles:
-
Luxury Residential Kitchens: The definitive final layer of protection for under-sink purifiers, ensuring water for infant formula, direct hydration, and organic meal preparation is flawlessly pure.
-
Bespoke Espresso and Beverage Stations: Safeguard the delicate flavor profiles of gourmet coffee beans by feeding your brewing equipment water completely unmarred by microscopic organic matter.
-
High-End Commercial Lounges & Beauty Salons: Provide an elite standard of care for executive clients, from pristine boardroom drinking water to hyper-purified facial misting treatments.
Technical Specifications & Global Certifications
-
Maximum Processing Flow Rate: 10 Liters Per Minute (10 LPM) for commercial and residential demands
-
Core Technology: Deep UV-C LED Solid-State Semiconductor
-
Disinfection Power: >99.99% Bacteria Inactivation Rate
-
Lifespan Capacity: 5,000 Active Flow-Activated Hours (Intelligent Auto Start/Stop)
-
Chemical Profile: 100% Mercury-Free, Eco-Friendly, and Non-Toxic
-
Automation: Integrated Flow Sensor Meter and Visual Feedback Indication Ring
-
Global Safety Compliance: Fully certified for premium international electrical, environmental, and material safety standards.
What’s Included in Your Premium ZeniRay Box:
-
1 x ZeniRay Smart 10 LPM UVC LED Core Module (Premium Brushed Metallic Chassis)
-
1 x Smart Flow-Activated Power Adapter and Control Unit
-
1 x Executive Mainline Connection Kit
-
1 x Elite Multilingual User & Installation Guide
