Published by ZeniRay · Water Safety Guides · Updated July 2026
What Size UVC LED Water Sterilizer Do You Need? A Flow-Rate Sizing Guide for Homes and Businesses in the UAE and Saudi Arabia
Choosing a UVC water sterilizer comes down to one number: flow rate, measured in litres per minute (LPM). Get it right and every drop that reaches your tap has received a full germicidal dose. Get it wrong and water moves through the chamber too quickly to be treated properly. This guide shows you how to match your property to the correct model in about two minutes.
Short answer
- One tap or a kitchen drinking point → 4 LPM under-sink
- Apartment or small villa, 1–2 bathrooms → 10 LPM whole-house
- Family villa, 3–5 bathrooms → 25 LPM whole-house
- Large villa with majlis and guest wing, or a small guesthouse → 45 LPM
- Hotel floor, clinic, restaurant, gym or staff accommodation → Pro-Stream 46 LPM
Why flow rate is the most important specification
Ultraviolet disinfection works on dose, and dose is the product of UVC intensity multiplied by contact time. The intensity is fixed by the LED array inside the chamber. Contact time is decided entirely by how fast the water is moving.
A sterilizer rated at 25 LPM delivers its full validated dose to every litre, as long as the water passing through does not exceed 25 litres per minute. Push 40 litres per minute through that same chamber and each litre spends less time under the LEDs, so the dose drops. The unit is still working, but it is no longer doing the job you bought it for.
This is why the correct question is never “how many people live here?” It is “how much water can this property draw at the same moment?”
How to calculate your peak flow in 60 seconds
Count the outlets that could realistically run at the same time during your busiest part of the day, then add up their typical flow rates.
| Outlet | Typical flow |
|---|---|
| Bathroom basin tap | 4–6 L/min |
| Kitchen tap | 6–8 L/min |
| Shower head | 8–12 L/min |
| Washing machine inlet | 8–10 L/min |
| Garden hose or outdoor tap | 12–18 L/min |
Worked example. A three-bedroom villa in Sharjah, family of five, weekday morning: two showers running plus the kitchen tap. That is roughly 10 + 10 + 7 = 27 litres per minute. The 10 LPM unit would be badly undersized here. The correct choice is the 25 LPM model, and the 45 LPM if the household also runs an outdoor tap or a maid’s bathroom during the same window.
ZeniRay sizing table
| Model | Rated flow | Best suited to | Reduction |
|---|---|---|---|
| Under-Sink 4 LPM | 4 L/min | A single drinking or cooking point. Studios, offices, pantries, coffee stations. | 99.999% |
| Whole-House 10 LPM | 10 L/min | Apartments and small villas with one or two bathrooms. Cafés, salons, small clinics with a single treatment room. | 99.9999% |
| Whole-House 25 LPM | 25 L/min | The standard choice for a family villa with three to five bathrooms. Restaurants, dental and beauty clinics, nurseries. | 99.9999% |
| Whole-House 45 LPM | 45 L/min | Large villas with a majlis, guest wing or outdoor kitchen. Guesthouses, gyms, staff accommodation blocks. | 99.999% |
| Pro-Stream 46 LPM | 46 L/min | Continuous commercial duty. Hotel floors, hospitality kitchens, medical facilities, facility-management contracts. | 99.999% |
Above 46 litres per minute, the standard solution is two units installed in parallel rather than one oversized chamber. Send us your riser diagram and we will size it for you.
Point-of-use or whole-house?
Point-of-use (4 LPM, under-sink) treats water at one outlet, usually the kitchen tap. It is the right answer for a tenant who cannot modify the building’s plumbing, for an office pantry, or for anyone who only wants protection on water they drink and cook with.
Whole-house (10 to 46 LPM) treats every litre entering the property, so showers, basins, ice machines and washing machines are covered too. In Gulf homes this matters more than most people expect, because inhaled shower aerosol and water used for wudu, brushing teeth and washing produce all come from the same tank.
Undersizing versus oversizing
Undersizing is the only real mistake. If your peak demand exceeds the rated flow, the water still reaches your tap, but the dose it received is lower than the validated figure, and you have no way of seeing that from the outside.
Oversizing costs more up front and nothing afterwards. A 25 LPM unit running at 8 litres per minute simply gives that water a longer exposure. There is no efficiency penalty, no wasted water and no additional running cost, because the LEDs are triggered by the smart flow switch and only draw power while water is actually moving. When you are between two sizes, take the larger one.

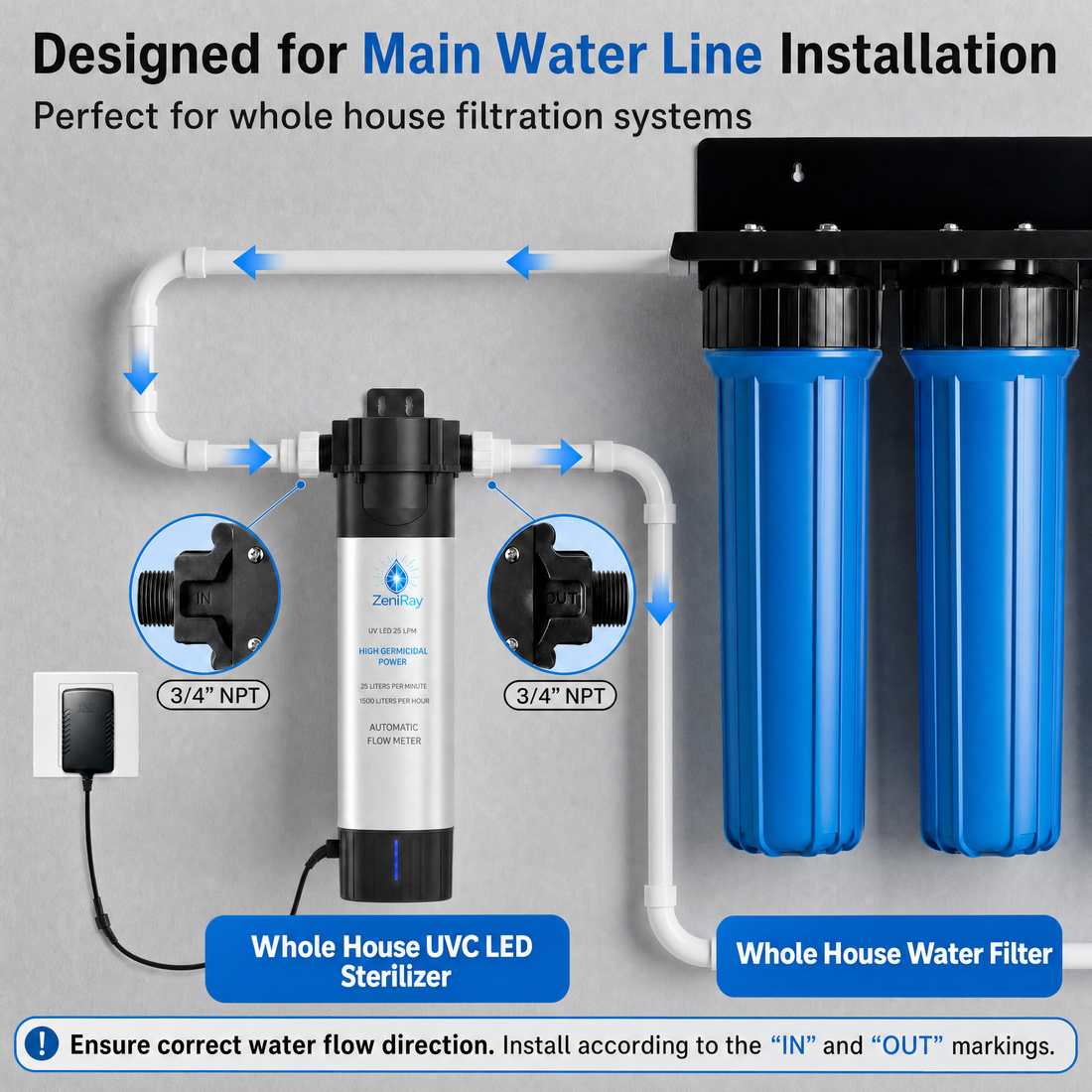

Where the sterilizer belongs in Gulf plumbing
Install the unit after the storage tank and after any filtration, as close to the point of use as the pipework allows. That sequence is deliberate.
Municipal water in Dubai, Abu Dhabi, Riyadh and Jeddah leaves the desalination plant treated and safe. The risk appears afterwards. Water sits in rooftop and underground tanks that reach 40 to 50 °C in summer, in darkness, without movement, sometimes for days. Those conditions favour bacterial growth and biofilm on tank walls and pipe interiors. A sediment or carbon filter improves taste and clarity, and in doing so it also strips out the residual chlorine that was the water’s last active defence.
Placing UVC disinfection at the end of that chain means the water is treated in the final seconds before it reaches your family, downstream of every place contamination can occur. That is the position ZeniRay is designed for.
What every ZeniRay model shares
- Mercury-free UVC LED. No mercury vapour lamp, therefore no mercury to break, dispose of or declare at customs.
- No chemicals and no by-products. UVC inactivates micro-organisms physically. Nothing is added to the water and taste is unchanged.
- Smart flow-switch activation. The LEDs fire the moment water moves and stop when it stops, with no warm-up delay.
- Food-grade 304 stainless steel chamber with PTFE reflector, lead-free construction.
- 5,000 active flow hours per LED module, which is years of normal household use, since the counter only runs while water is flowing.
- Zero routine maintenance. No cartridges, no filters to buy, no annual lamp change.
- Manufactured to CE, RoHS, REACH and IEC standards, with a 3-year replacement warranty from ZeniRay.
- Free worldwide shipping from our UAE and China warehouses, typically 10 to 14 business days to the UAE and Saudi Arabia.
Frequently asked questions
What does LPM mean on a water sterilizer?
LPM stands for litres per minute, and it is the maximum flow at which the unit delivers its full germicidal UV dose. It is a ceiling, not a target: a 25 LPM sterilizer performs correctly at any flow up to 25 litres per minute.
What size UV sterilizer do I need for a villa in Dubai?
For a typical three to five bathroom villa, the 25 LPM whole-house model is the correct size. Choose the 45 LPM if the property has a majlis, a guest wing, an outdoor kitchen or landscaping taps that run at the same time as the main house.
Does a UVC sterilizer replace my water filter?
No, and it is not meant to. Filters remove sediment, chlorine, taste and odour. UVC inactivates bacteria, viruses and protozoa that filters do not reliably stop. They solve different problems, and the correct arrangement is filtration first, UVC last.
Should the unit go before or after the water tank?
After the tank. Treating water before it enters the tank leaves it unprotected for the hours or days it sits there, which is exactly where contamination develops in Gulf conditions.
Is UVC LED safe? Does it change the water?
The UVC light is fully enclosed inside a sealed stainless steel chamber and never contacts skin or eyes. Nothing is added to the water, no residue is left behind and there is no change to taste, odour or mineral content.
How long does the LED module last?
5,000 active flow hours. Because the module only operates while water is running, a household drawing an hour of treated water a day would take well over ten years to reach that figure.
Does it work with tanker-delivered water?
Yes, and tanker-supplied properties are among the strongest use cases, since water quality varies by delivery and by tanker hygiene. The requirement is that the water is visually clear, as suspended solids shield micro-organisms from UV light. Where water is cloudy, fit a sediment filter upstream.
Do I need a plumber to install it?
The whole-house units are fitted inline on the main feed and take a plumber roughly one hour. The 4 LPM under-sink model connects to a standard kitchen supply line and most customers fit it themselves.
Still unsure which model fits your property?
Tell us your bathroom count, whether you are on a rooftop or underground tank, and whether the supply is municipal or tanker. We will confirm the right flow rate before you order. Distributor, hotel and facility-management pricing is available on request.
